Volkswagen Van Dashboard Warning Lights Guide

Added: 07 July 2026

Dashboard warning lights can cause unnecessary panic or costly damage if ignored. For instance, recent UK motoring data here shows that nearly one in five drivers (19%) trust their own judgement over their vehicle's warning systems, frequently driving for days or even weeks with an active alert.

For commercial operators though, ignoring these signs will directly risk severe vehicle damage, failed MOT tests, and expensive fleet downtime.

So much so that in this guide, we will break down the most common Volkswagen commercial vehicle warning lights so you know exactly what to do when one appears.

Here, the colour of the light tells you how urgent the problem is.

Red lights mean danger. You need to pull over safely and turn off the engine straight away. Amber lights mean a check is needed. You can usually drive on, but you should book a workshop visit soon, and green means they are fine.

But what should you do when each one comes on?

VW Commercial Vehicles Covered by This Layout Manual

This dashboard warning lights guide covers the entire modern Volkswagen commercial vehicle range. Whether you drive a compact Caddy, a classic Volkswagen Transporter T6, or a newer Transporter T6.1, the warning layouts share a similar DNA.

This advice will also apply if you operate a large Crafter panel van, a rugged Amarok pickup, or the latest all-electric ID Buzz Cargo as well.

🔴 Red Lights (Stop Immediately) 🟡 Amber Lights (Check Soon)

Is a warning light already showing on your van?

Don't risk costly downtime. Our manufacturer-trained technicians can quickly diagnose the exact fault using official Volkswagen software.

Book a Diagnostic Check Online

Guide Directory

What do blue lights mean on a VW dashboard?

Blue lights on a Volkswagen commercial vehicle dashboard mean that you have a specific system switched on and is working normally. Unlike red or amber lights, they do not indicate a mechanical fault, a safety risk, or an MOT failure.

There are only two common blue symbols you will see while driving:

Light Name Description & Action Required
🔵 Main Beam Headlights This icon shows that your high-beam headlights are fully turned on.

No vehicle fault is present, but remember to manually dip your lights when you see oncoming traffic, other road users, or when entering well-lit town or city areas.
🔵 Light Assist / High Beam Control On modern VW vans equipped with automated matrix or smart lighting systems, a blue headlight icon featuring the letter 'A' means the automatic main beam assistant is active.

The van's front camera will then automatically switch between dipped and high beams depending on street lighting and surrounding traffic.

What Do Green Information Lights Mean on a VW Dashboard?

Unlike red and amber warnings, green dashboard lights are purely informational.

They do not indicate a fault or a safety risk, and a green light simply means that a specific vehicle function is currently switched on and operating exactly as it should.

Light Name Description Action Required
Indicators & Hazard Warning Your left or right turn signals, or hazard lights, are actively flashing. None, just ensure they cancel after you complete your turn.
Dipped Beam Headlights Your standard driving lights are switched on. None, but remember to switch them off when you park if your van does not have automatic lights.
Cruise Control The cruise control or adaptive cruise control system is currently maintaining your speed. None, but tap the brake pedal or use the steering wheel controls to cancel the system when needed.
Start / Stop System Usually an 'A' inside a circular arrow. The engine has automatically shut down while stationary to save fuel. None. Simply press the clutch or accelerator, and the engine will instantly restart.
Lane Assist The lane keeping system is active and successfully detecting the road markings on either side of the van. None, please drive as normal. If you drift without indicating, the steering wheel will vibrate or gently steer you back.
High Voltage Battery Warning Light

Electric Van and Specialised Dashboard Symbols

If you drive the all-electric ID Buzz Cargo, you might spot some unique icons that won't be covered in this guide.

The most important, though, is the ID Buzz turtle symbol, which indicates that you have a critical drop in electrical power, forcing the van to protect its high-voltage battery.

For all models, an amber spanner light VW display signals that a routine service or minor fault check is due.

If you then see a yellow steering wheel symbol, it means the steering angle sensor calibration is slipping, or the power steering is partially restricted, which makes the steering wheel feel slightly stiff.

How Your Engine Control Unit Works

Your van relies on an Engine Control Unit. This unit then acts as the central brain of your vehicle, as it constantly talks to sensors around the van, such as the Oil Pressure Sensor and Traction Control monitors.

Then, when a sensor finds a fault, the Engine Control Unit uses On-Board Diagnostics to turn on the correct dashboard light for you and log a specific error code for our mechanics to read.

Volkswagen Red Warning Symbols and Urgent Breakdown Safety Hazards

These lights indicate that you have a critical safety issue or a serious mechanical fault.

🔴 Red Warning Lights Overview

A red dashboard warning light on a Volkswagen commercial vehicle indicates a critical safety hazard or severe mechanical fault. Here, you must safely pull over and switch off the engine immediately. As continued operation risks catastrophic engine failure, loss of vehicle control, and invalidation of the manufacturer's warranty.

Light Name Description Action
Engine Oil Pressure Low oil pressure or critically low oil level. How to fix
Cooling System Engine is overheating, or coolant is low. How to fix
Braking System Low brake fluid or a fault with the brake system. How to fix
Battery Charge Alternator fault or the battery is not charging. How to fix
Power Steering Failure Total loss of power steering assistance. How to fix
DSG Gearbox Overheating The automatic transmission fluid is too hot. How to fix
Central Warning A critical fault that requires you to read the dashboard display. How to fix
Door or Bonnet Open A door, the tailgate, or the bonnet is not shut properly. How to fix






Red Oil Can Warning Light

How to check oil level when the red oil can symbol appears

If the red oil can symbol appears, you must pull over safely and switch off the engine immediately.

Wait a few minutes for the oil to settle, open the bonnet, and pull out the dipstick to check the level. If it is low, top it up using only Volkswagen-approved engine oil, which is typically a high-grade 5W-30 long-life oil matching VW 507 00 specifications.

If the light stays on after topping up, do not drive the van, as low oil pressure will destroy the internal components within minutes.

Engine Cooling System Warning Light

How to top up coolant on a Volkswagen commercial vehicle

When your dashboard flags a cooling system error, let the engine cool down completely for at least 30 minutes before touching the expansion tank.

Carefully twist open the blue cap under the bonnet to release any residual pressure.

Top up the tank to the maximum mark using a mixture of distilled water and genuine Volkswagen G12 evo or G13 anti-freeze coolant fluid. If you see signs of a leak or experience recurring low coolant warnings, have a dealer pressure-test the radiator system.

Battery Warning Light

Why is the battery light staying on when the engine is running?

An illuminated battery symbol while the engine is running means the alternator is no longer generating an electrical charge to power the vehicle.

At this point, the van is running purely on stored battery power and will shut down entirely once that power drains away.

Consider turning off the radio, fans, and heated mirrors immediately, and drive directly to a workshop before the vehicle cuts out on the road.

Red Triangle Warning Light

Acoustic Warnings and Driver Assistance Errors

A red triangle exclamation mark VW warning rarely appears in silence.

It is usually accompanied by distinct Volkswagen warning chime meanings, ranging from single pings for low fuel to rapid, urgent beeps for low oil pressure or an unsecured door.

Similarly, systems like Adaptive Cruise Control rely on clean sensors. If dirt or heavy spray hits the grille, a front assist sensor blocked VW message will appear, showing that adaptive cruise control is temporarily unavailable until the badge is wiped clean.

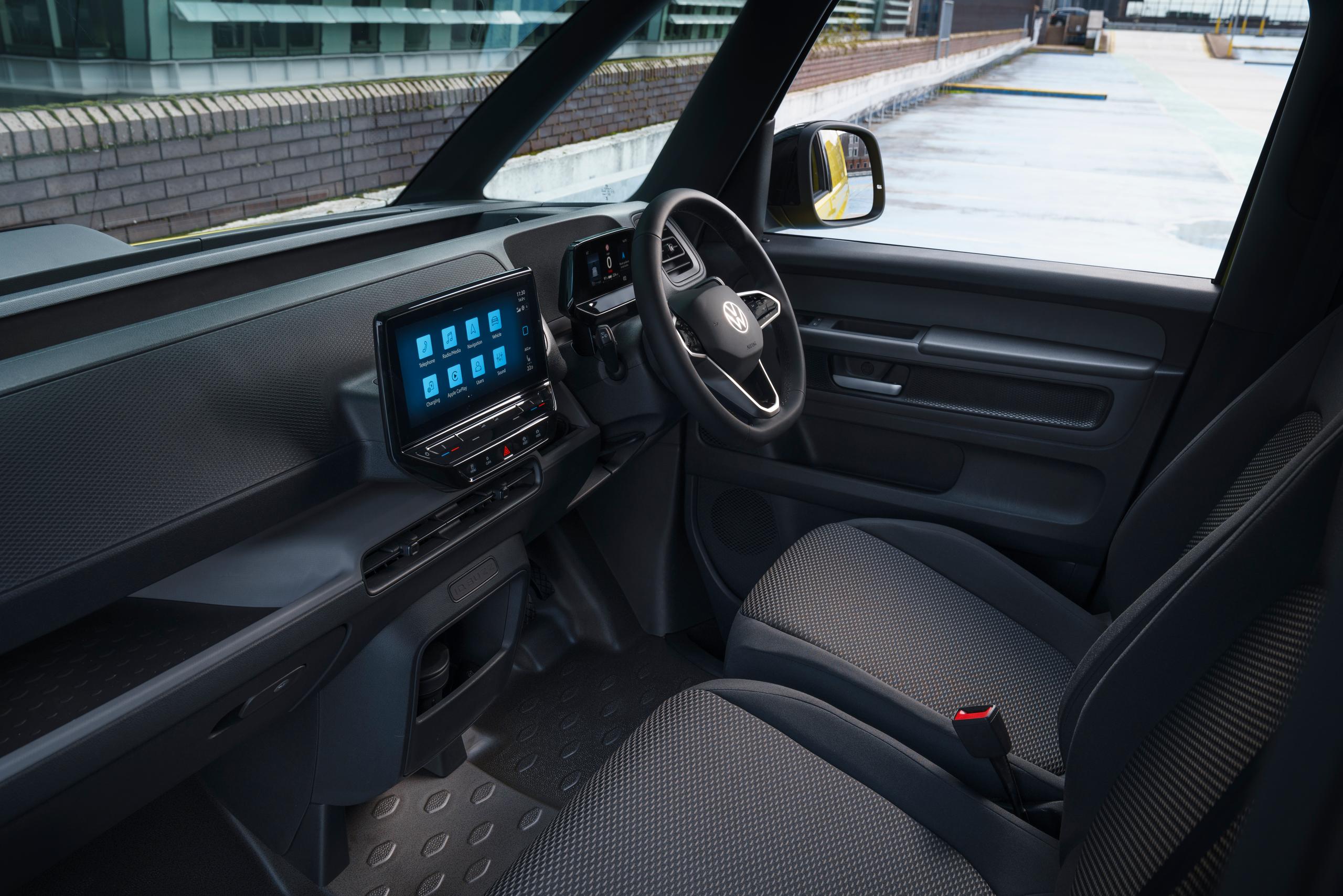

ID. Buzz Cargo Interior

Understanding Limp Mode

Sometimes a severe yellow or red warning light will trigger Limp Mode.

This is an automatic protective vehicle state. The van will greatly reduce engine power and lower your top speed.

As Limp Mode stops you from doing more damage to the engine or the Direct Shift Gearbox while you drive to a safe place and wait for Roadside Assistance.

Volkswagen Amber Warning Lights and Preventative Maintenance Issues

These lights indicate that you have an issue that needs attention before it turns into a major breakdown.

For instance, here you can see:

Light Name Description Action
Engine Management A fault with the engine running or emissions system. How to fix
DPF Warning The diesel particulate filter is blocked with soot. How to fix
Tyre Pressure One or more tyres have low air pressure. How to fix
Glow Plugs A fault with the diesel engine heating system. How to fix
AdBlue Warning The AdBlue fluid level is low, or there is a system fault. How to fix

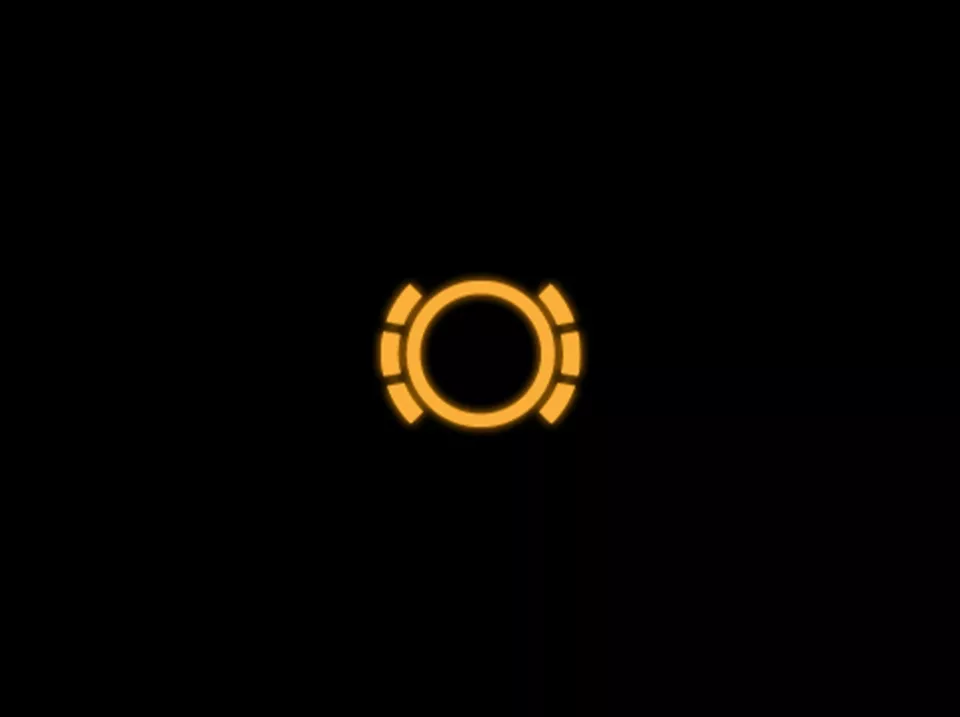

Brake Pad Wear The brake pads are wearing thin and need replacing soon. How to fix

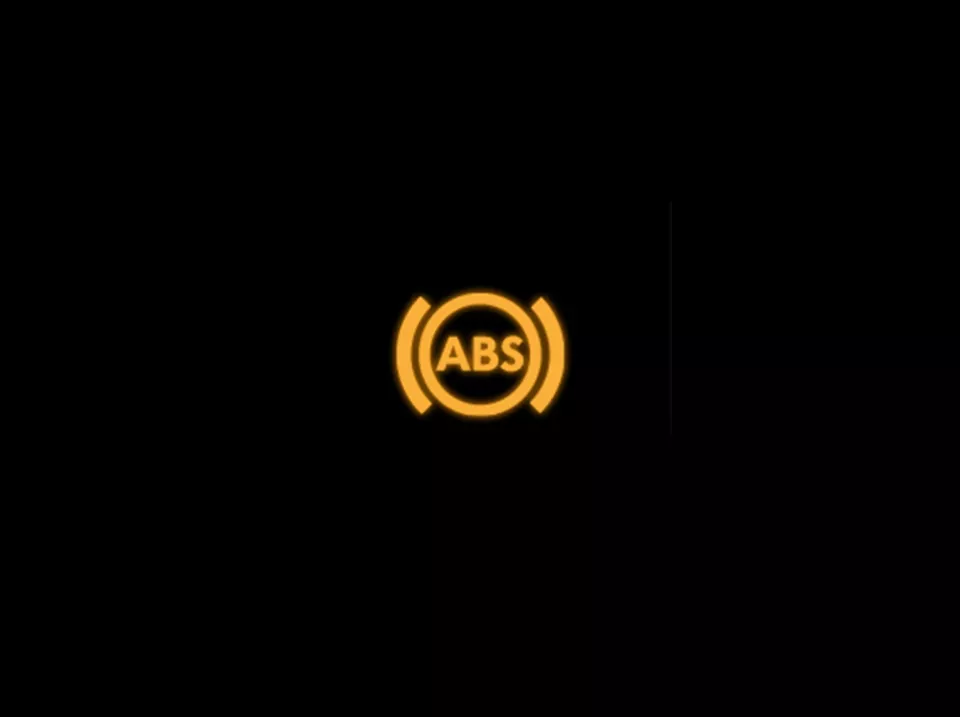

ABS Warning A fault with the anti-lock braking system. How to fix
Airbag System A fault in the airbag or seatbelt tensioner system. How to fix

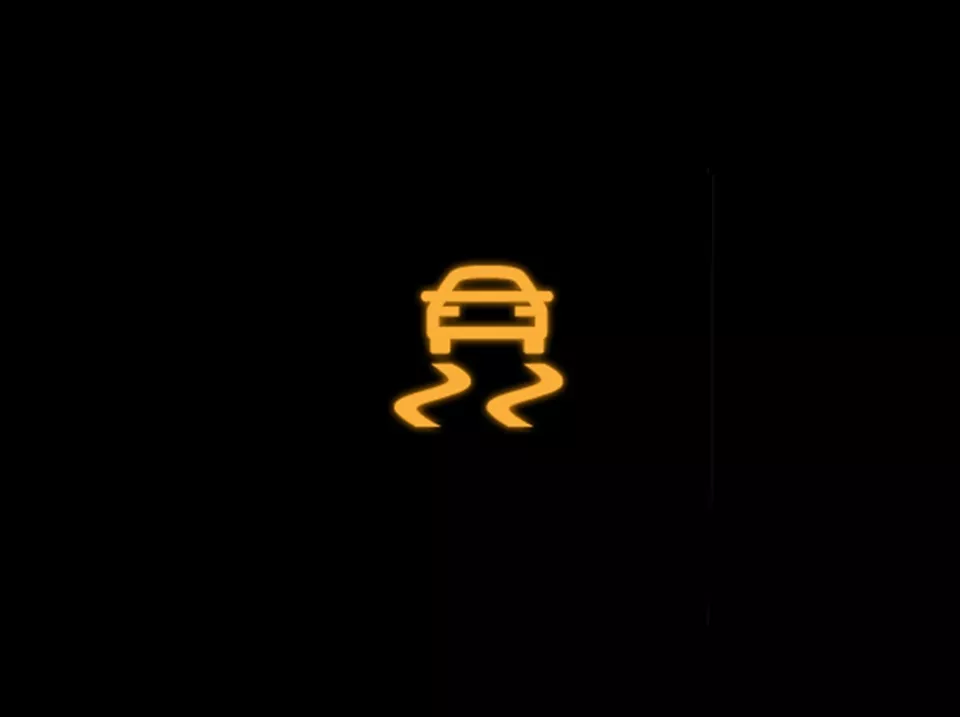

Electronic Stability Programme The traction control system is stepping in, or there is a fault. How to fix
Exterior Bulb Failure One of the lights on the outside of the van has stopped working. How to fix
Water in Fuel Filter Water has been detected in the diesel fuel system. How to fix

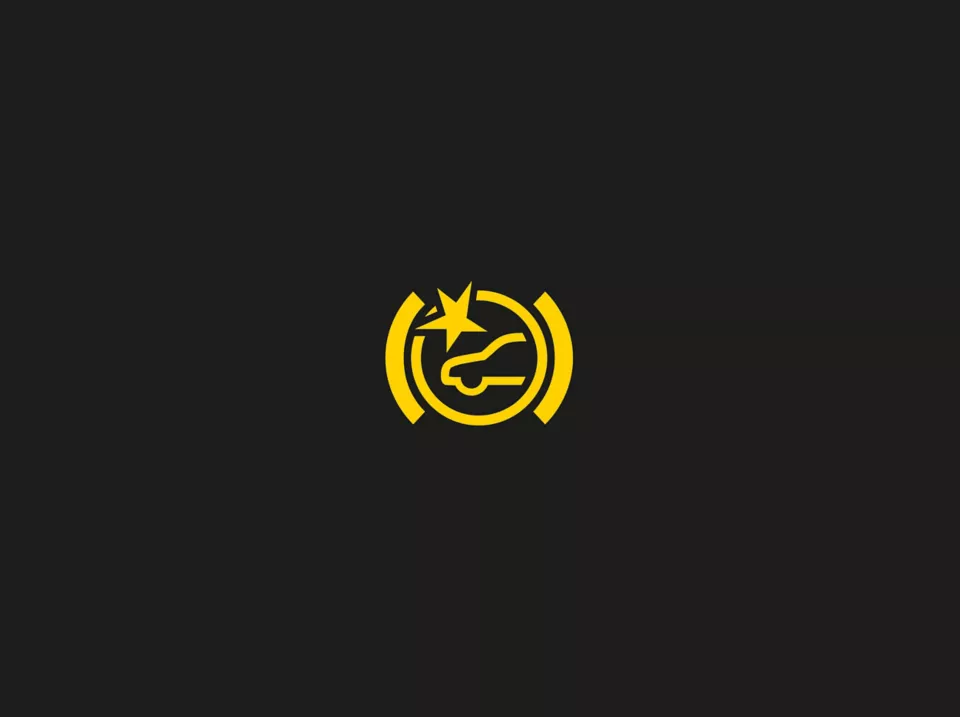

Front Assist Warning The radar system at the front of the van is blocked or has a fault. How to fix
Immobiliser System The van does not recognise the key being used to start the engine. How to fix
Washer Fluid Low The windscreen washer fluid reservoir is nearly empty. How to fix

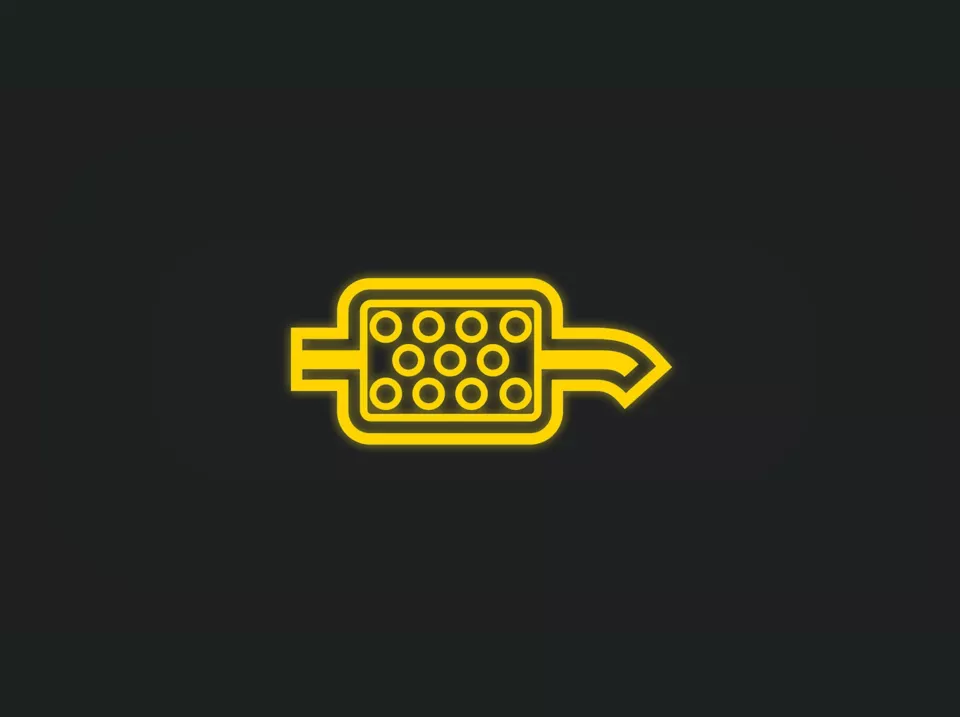

DPF Light

How long to drive at 40mph to clear VW DPF light?

To clear a standard amber diesel particulate filter warning, you generally need to drive for 15 to 20 minutes.

You should also keep your speed above 40 MPH on a clear dual carriageway or motorway, maintaining the engine speed between 2,000 and 2,500 RPM.

This then creates enough exhaust heat to burn off the trapped soot. You cannot manually regenerate a diesel particulate filter while stationary either; the vehicle must be driven under load to complete the automated cleaning cycle.

Engine Management Light

Can a blocked DPF cause the engine management light to come on?

Yes, if a blocked diesel particulate filter is ignored, the soot build-up will eventually trigger the main engine management light alongside it.

At this stage, the exhaust backpressure becomes too high, and the vehicle will restrict performance to prevent further component breakdown.

If you face a total filter failure here, a full VW Transporter DPF replacement cost can scale from £1,200 to over £2,000, depending on the model generation.

AdBlue Refill Light

What to do if VW van says AdBlue no restart in 50 miles?

You must find a filling station and top up the fluid immediately. Volkswagen vans feature a strict, legally mandated countdown system for exhaust emissions; once that mileage counter hits zero, the engine management computer will deliberately block the starter motor.

The engine will then refuse to restart the moment you switch off the ignition, leaving you stranded until the system is refilled and reset by a diagnostic technician.

Volkswagen Mechanic Inspecting Van

What does water in fuel filter mean on a diesel van?

Diesel fuel naturally attracts moisture, which settles in the fuel filter casing to protect the highly sensitive injection system.

Then, when the sensor detects that the collection trap is full, the water-in-fuel warning activates.

To resolve this, a technician must open the drain valve located at the base of the fuel filter housing under the bonnet, purging the trapped water until clean diesel flows.

DPF Light

Understanding the DPF Regeneration Process

A flashing DPF light VW symbol means your diesel particulate filter is heavily blocked with soot and needs an immediate clearing run.

To start the automatic VW DPF regeneration process, drive on a dual carriageway at over 40 MPH for 15 minutes while keeping the engine revs around 2,500 RPM.

If a flashing engine light or diesel warning accompanies it, you may have a faulty EGR valve or a deeper diesel engine management fault.

For manual vans experiencing heavy vibrations alongside starting problems, the culprit is often a failing dual mass flywheel rather than a pure engine issue.

VW Red Oil Pressure Light and Low Lubrication Faults

Why it is important

Oil is the lifeblood of your engine, and it stops the internal metal parts from rubbing together.

If the pressure drops, the engine parts will grind against each other and cause severe friction.

How to fix

Stop the van safely and check the oil level using the dipstick under the bonnet.

If it is low, top it up with the correct Volkswagen-approved oil. If the light stays on after topping up, do not start the engine again.

You must call for roadside recovery to take the van to a main dealer. A trained technician needs to run a diagnostic check on the oil pump and sensors to protect the engine and keep your warranty fully intact.

What happens if ignored

The engine will destroy itself very quickly, and you will need a complete engine replacement, which is a massive expense and will keep your commercial vehicle off the road for weeks.

Stiff Power Steering and Total Electronic Steering Rack Failure

Why it is important

Vans are incredibly heavy vehicles. Without power steering, turning the wheel requires a massive amount of physical strength.

A red light means the system has failed completely, making the van very difficult to control safely at low speeds or when cornering.

How to fix

Pull over safely and turn off the engine. Take the key out, wait about 30 seconds, and restart the van.

This can sometimes reset the system. If the red light stays on, do not attempt to drive. You will then need to call for roadside recovery.

A Volkswagen Van Centre will need to run a diagnostic check on the electronic steering rack and motor to find the exact fault.

What happens if ignored

You risk a serious accident because you will not be able to steer the van quickly enough to avoid hazards, and you could also cause further damage to the steering column.

DSG Gearbox Overheating in Traffic or Heavy Towing Conditions

Why it is important

The direct shift gearbox (DSG) uses complex electronics and clutches to change gears smoothly.

This light means the transmission fluid has reached a dangerously high temperature, usually from towing heavy loads or sitting in slow traffic on steep hills.

How to fix

Stop the van safely as soon as you can. Put the gear selector into Park and leave the engine running at idle.

This allows the cooling system to bring the gearbox temperature down. Once the light goes out, you can carefully drive on.

If the light then stays on or flashes, turn off the engine and contact a main dealer. They will check the gearbox oil level and the cooling lines.

What happens if ignored

The internal clutches and gears will warp and break.

Replacing a DSG commercial gearbox is then one of the most expensive repairs you can face, easily costing thousands of pounds.

Automatic Gear box warning light

Why is my DSG gearbox overheating in slow traffic?

The Direct Shift Gearbox uses dual automated clutches that can slip constantly when you crawl slowly forward on hills or slide your foot lightly on the brake pedal.

This friction rapidly overheats the transmission fluid. If the warning symbol flashes, pull over safely, select Park, and let the engine idle for a few minutes so the radiator cooling lines can drop the gearbox fluid temperature back to safe operational levels.

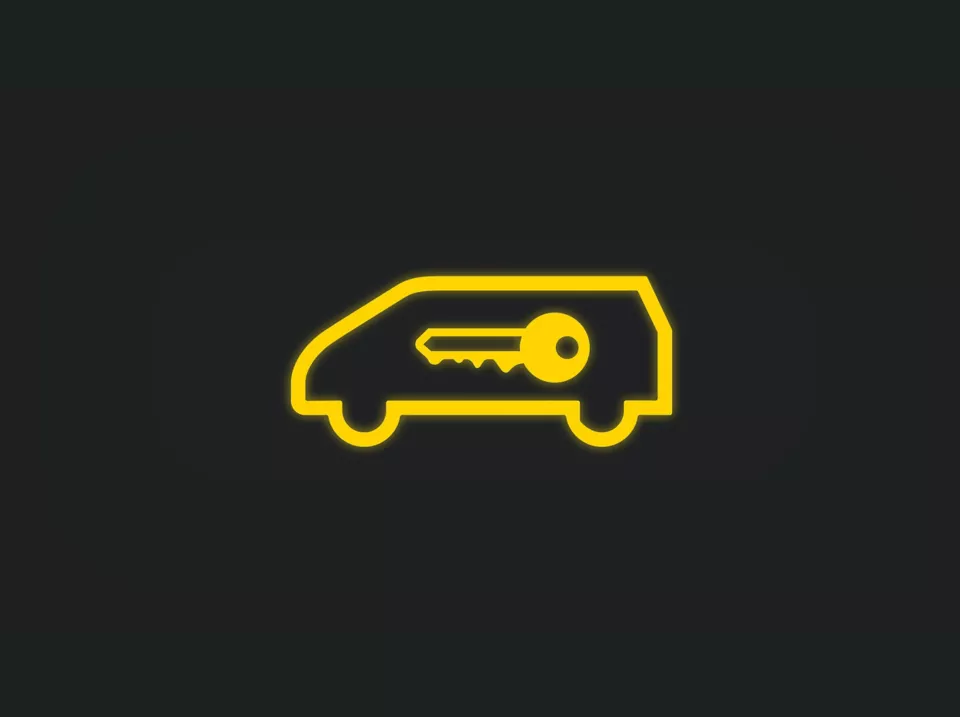

Immobilser Warning Light

Why is my VW immobiliser active and engine cutting out?

If the engine fires up for 1 second and then dies while displaying an immobiliser message, the security system does not recognise the anti-theft chip inside your key fob.

This can happen if the key battery is dead, the key has been dropped and damaged, or the receiver loop behind the ignition barrel has failed.

You should also try using your spare key to see if the van recognises it instead.

Start Stop Warning Light

How to clear the start stop error on a VW dashboard

The start-stop system relies on complex variables, including battery health, engine temperature, and cabin climate settings.

An error message usually triggers if the vehicle battery charge level drops too low or if an external sensor fails.

The system can often be temporarily cleared by cycling the ignition or resetting the battery monitoring software during a main dealer diagnostic scan.

Master Central Warning Light and Digital Instrument Cluster Messages

Why it is important

This red triangle with an exclamation mark is a master warning. It illuminates to draw your attention to a critical message on your dashboard display.

It also often lights up alongside other warnings or acoustic chimes to tell you that something needs your immediate attention.

How to fix

Stop the vehicle safely. Look at the digital display screen between your speed dials to read the specific text message. It might tell you that a door is wide open, or it might warn of a severe mechanical failure.

Here you should follow the instructions on the screen, and if you are unsure what the message means, do not drive the van. Call your local dealership for advice.

What happens if ignored

Because this light can indicate anything from an open bonnet flying up at speed to a severe engine fault, ignoring it puts you, your cargo, and other road users in direct danger.

VW Engine Overheating Signs and Low Engine Coolant Troubleshooting

Why it is important

The cooling system stops your engine from melting under extreme heat.

If the coolant then leaks or the water pump fails, the engine temperature will spike instantly.

How to fix

Pull over safely and turn off the engine. Let the van cool down for at least 30 minutes before opening the bonnet. Check the coolant reservoir level. If it is low, you can add water in an emergency to reach a garage.

However, the best course of action is to have a Volkswagen commercial dealer pressure test the system.

They will then find the exact leak and replace any split hoses with genuine parts to ensure the repair lasts.

What happens if ignored

The engine block can warp, or the head gasket can blow.

This then leads to very expensive engine rebuilds and massive downtime for your business.

Volkswagen Red Brake Fluid Warning and Primary Braking System Faults

Why it is important

This is the most critical safety system on your van, as this light means your brakes might not work when you press the pedal.

How to fix

Stop the vehicle immediately. Check that the handbrake is fully released. If the light stays on, check the brake fluid reservoir under the bonnet.

If the fluid is low, do not drive the van. Have it recovered to a dealership. A service department needs to inspect the brake lines for leaks and check the brake pads.

Here, using approved technicians guarantees your van remains legally safe for the road and protects your drivers.

What happens if ignored

You could experience a complete brake failure while driving, leading to a serious accident.

Alternator Charging Failure and Low Battery Power Symptoms

Why it is important

Your van relies on electricity to run the fuel injectors, the dashboard, and the lights. So, if the alternator stops charging the battery, the van will soon lose all power and stop dead.

How to fix

Turn off any unnecessary electrical items like the radio, air conditioning, and heated seats.

Drive directly to your nearest Volkswagen commercial service centre. They will test the battery health and the alternator output.

You should then replace a faulty alternator with a genuine manufacturer part, as this makes sure your van will start every morning, especially during the cold winter months.

What happens if ignored

The van will simply shut down while you are driving once the battery is completely drained. You will be stranded waiting for a tow.

VW Engine Management Amber Warning and Emission Sensor Faults

⚙️ Engine Management Overview

An amber engine management light indicates an emissions or sensor fault. While the van remains operational, fuel efficiency and performance will degrade. Operating the vehicle for extended periods with this warning active can cause secondary thermal damage to the catalytic converter and diesel particulate filter.

Why it is important

Also known as the check engine light, this covers hundreds of potential faults. It usually means a sensor has detected that the engine is not running efficiently, which will cost you money in wasted fuel.

How to fix

You can usually continue to drive, but you should book a diagnostic check at your main dealer right away.

Only an official dealership has the latest software to accurately read the specific fault codes. Trying to guess the problem or using cheap aftermarket sensors often leads to returning faults and lowers the trade-in value of your van.

What happens if ignored

The van will use more fuel, and performance will drop. Eventually, it could cause secondary damage to expensive parts like the catalytic converter.

Blocked Diesel Particulate Filter Diagnostics and Forced DPF Cleaning Runs

💨 Diesel Particulate Filter (DPF) Overview

The amber Diesel Particulate Filter warning light illuminates when the exhaust soot trap is blocked. To initiate passive regeneration, the vehicle must be driven at a sustained speed above 40 mph for approximately 15 minutes at 2,000 RPM, allowing exhaust temperatures to safely incinerate the accumulated soot.

Why it is important

The Diesel Particulate Filter traps exhaust soot. To clear itself, the filter must reach a high temperature through prolonged driving.

If your van is used for urban multi-drop delivery routes, the engine rarely reaches the required temperature.

Constant stopping, starting, and idling on multi-drop routes accelerates soot build-up rapidly, meaning a delivery van can block its DPF three times faster than a long-distance highway vehicle.

How to fix

Take the van out of its urban multi-drop cycle and drive it on a dual carriageway or motorway for 15 to 20 minutes.

Keep your speed above 40 MPH and maintain engine revs between 2,000 and 2,500 RPM to build up the necessary exhaust heat.

If the light remains steady or flashes after this run, book a workshop visit immediately for a diagnostic assessment.

What happens if ignored

The filter will overload completely, forcing the engine into a low-power safety state.

A heavily impacted filter cannot clear itself and will require a full workshop replacement.

VW Commercial Tyre Pressure Monitoring Alerts and Payload Calibration

Why it is important

Vans carry heavy, shifting payloads, making correct inflation crucial for stability.

Unlike a passenger car, carrying an extra 1,000kg of cargo drastically alters tyre deflection. This extra weight causes the Tyre Pressure Monitoring System to trigger false alarms if you haven't recalibrated the system after loading up, and running under-inflated with heavy payloads causes rapid, dangerous sidewall wear.

How to fix

Stop at the next service station and check your pressures when cold. Always inflate to the specific loaded settings found on your door frame placard, rather than general unladen figures.

Once inflated, reset the monitoring system via your dashboard menu. If a tyre keeps losing air, a main dealer should replace it with reinforced, commercial-grade (C-rated) heavy-duty tyres built for heavy payloads.

What happens if ignored

You risk an explosive roadside blowout under heavy load, severely compromised stopping distances, and rapid tyre degradation on the tread shoulders.

VW Diesel Glow Plug Failure and Cold Weather Engine Starting Problems

Why it is important

Diesel engines need glow plugs to warm the cylinders before starting, especially on cold mornings. If this light stays on or flashes while driving, there is a fault in the engine management system.

How to fix

If the van is struggling to start, book it into a service centre. Technicians will test the electrical resistance of the glow plugs.

Always have them replaced as a full set using official parts. This guarantees reliable starts for your fleet when the weather turns freezing, stopping your drivers from being delayed on their morning routes.

What happens if ignored

The van will become very difficult or impossible to start in cold weather, and it will fail its MOT emissions test.

AdBlue System Countdown Fault and Starter Motor Non-Restart Risks

AdBlue System Countdown Overview

The AdBlue warning system displays an amber light alongside a mileage countdown when exhaust treatment fluid is low. If the fluid is not replenished before the countdown reaches zero, the engine immobiliser will activate, legally preventing the vehicle from restarting until the system is refilled and reset.

Why it is important

Modern diesel commercial vehicles use AdBlue to break down harmful exhaust emissions.

The dashboard will then show a mileage countdown when the fluid starts getting low. The system is legally required for the van to run.

How to fix

You need to top up the AdBlue tank as soon as possible. The filler cap is usually located right next to the diesel filler cap.

You can buy AdBlue at most petrol stations. If you top it up and the light stays on, or if the light shows a spanner symbol, there is a system fault, and you must book the van into a main dealer for a diagnostic check.

What happens if ignored

Once the mileage countdown reaches zero, the engine will refuse to start the next time you turn it off. Your van will be completely stranded until a mechanic resets the system.

Heavy Duty Commercial Brake Pad Wear and Axle Friction Depletion

Why it is important

Vans go through brake pads faster than cars because of the heavy cargo they carry.

This light is a built-in safety reminder telling you the friction material on your brake pads is getting dangerously thin.

How to fix

You do not need to pull over immediately, but you should book a service right away.

A technician needs to measure the thickness of the pads and replace them. Having this done at an official dealership ensures they use the correct heavy-duty pads designed specifically for commercial payloads.

What happens if ignored

The pads will wear down to the bare metal. This will ruin your brake discs, making the repair much more expensive, and drastically increase the distance it takes to stop the van.

Active ABS Wheel Speed Sensor Faults and Emergency Braking Issues

Why it is important

The Anti-lock Braking System pulses the brakes very quickly during an emergency stop.

This stops the wheels from locking up and allows you to keep steering the van away from danger while braking heavily.

How to fix

Your normal brakes will still work, so you can continue driving. However, you must drive carefully and leave a larger gap between your vehicle and the vehicle in front. Book the van into a service centre as soon as possible.

They will plug in a diagnostic machine to find out which wheel speed sensor has failed and replace it.

What happens if ignored

If you have to brake suddenly, the wheels will lock up, and the van will skid out of control. An illuminated ABS light is also an instant MOT failure.

ABS Light

Is it safe to drive with an amber ABS light?

Your mechanical brakes will still stop the van, meaning you can safely drive to the nearest garage.

However, the anti-lock safety assist features are fully deactivated. If you stomp on the pedal in the wet, the wheels will lock up, and the van may skid.

Here, you should leave a much larger gap behind the vehicle ahead, avoid high speeds, and remember that an active airbag or ABS warning light results in an instant UK MOT test failure.

Brake Pad Wear Light

What happens if you ignore the brake pad wear light on a van?

Ignoring this light means the remaining friction material on the pads will completely wear away.

The bare steel backing plates will begin grinding directly against the brake discs, drastically increasing your stopping distances and ruining the discs.

What could have been a quick, low-cost pad change turns into an expensive overhaul requiring heavy-duty commercial brake pads and matching discs across the entire axle.

Red Steering Wheel Light

What causes the red steering wheel light on a VW Transporter?

A solid red steering wheel icon indicates a critical failure of the electronic power steering column assembly or its power supply.

The van will then instantly lose all steering assistance, making the wheel incredibly stiff and dangerous to turn at road speeds.

Here, you should then pull over immediately and request roadside recovery; do not attempt to drive the vehicle onward.

Electronic stability programme light

What causes the electronic stability programme light to flash?

A flickering or flashing stability control light means the traction control software is actively working to prevent the tyres from spinning on a slippery surface.

It reduces engine torque and pulses individual brakes to keep you travelling straight on wet or icy roads.

If the light then switches on permanently, the safety system has either been turned off via the dashboard or has suffered an electrical component fault.

Volkswagen Passenger Airbag Faults and Supplemental Restraint System Maintenance

Why it is important

This light monitors the safety systems designed to protect the driver and passengers in a crash, including the airbags and the explosive seatbelt tensioners.

If the light stays on after you start the engine, the system is deactivated.

How to fix

You can safely drive the vehicle to a workshop, but you should get it looked at straight away.

Only a qualified main dealer technician should work on airbag systems, as the components use small explosive charges that require specialist handling and software calibration.

What happens if ignored

None of the airbags will deploy in the event of an accident, leaving you and your passengers at serious risk of injury. This will also cause the van to fail its MOT test.

Unsecured Cargo Doors or Unlatched Engine Bonnet Warning Layouts

Why it is important

Driving a commercial vehicle with unsecured doors is incredibly dangerous.

If the rear doors or sliding doors are open, you risk losing heavy cargo onto the road. If the bonnet is unlatched, the wind can catch it and smash it against your windscreen while driving.

How to fix

Pull over as soon as it is safe to do so. Walk around the van and firmly shut all doors, the tailgate, and the bonnet.

If the light stays on after checking everything, a door sensor might be broken. You should book the van in for a repair so the central locking system remains secure overnight.

What happens if ignored

You risk a major accident, losing expensive cargo, or having your van broken into because the alarm and central locking will not set properly.

Flickering Electronic Stability Programme Light and Loss of Tyre Grip

Why it is important

This system monitors the grip of your tyres. If the van starts to skid on a wet or icy road, the ESP system automatically applies the brakes to individual wheels to keep the van pointing straight.

If the light flashes, the system is actively saving you from a skid. If it stays on permanently, there is a fault, or the system has been manually turned off.

How to fix

If the light is flashing, simply ease off the accelerator and drive carefully for the road conditions.

If the light stays on solid, check that you have not accidentally pressed the ESP off button on the dashboard.

If the button does not turn the light off, you need to book a diagnostic check at your local dealer to repair the safety system.

What happens if ignored

Your van will handle very unpredictably in bad weather. You are far more likely to lose control and crash during heavy rain or snow.

Sealed LED Light Module Failure and Blown Bulb Warnings

Why it is important

Commercial vehicles do a lot of miles in the dark. This light tells you that a headlight, brake light, indicator, or number plate light has blown. Other road users need to see exactly where your van is and what you intend to do.

How to fix

Walk around the van while the lights and hazard warning flashers are turned on to find the blown bulb. You can replace many bulbs yourself using the vehicle handbook.

However, modern LED light clusters on newer VW vans usually require a dealer visit to replace the entire sealed unit.

What happens if ignored

Driving with a blown headlight or brake light is illegal. You will likely be pulled over by the police and given a fine, and the van will immediately fail its next MOT.

Moisture Contamination and Draining Water from the Diesel Fuel Filter Trap

Why it is important

Diesel fuel can sometimes become contaminated with water. Modern diesel engines run under extreme pressure, and water causes catastrophic internal damage.

The fuel filter is designed to catch this water before it reaches the engine, but it eventually fills up.

How to fix

Do not ignore this warning. You need to take the van to a service centre immediately. A technician will safely drain the water from the fuel filter trap or replace the filter completely.

They will also dispose of the contaminated fluid safely.

What happens if ignored

Water will bypass the filter and enter the fuel injectors. This will destroy the fuel injection system and stop the engine from running. It is an incredibly expensive repair that is completely avoidable.

Front Assist Sensor Blocked Errors and Adaptive Cruise Control Dropping Out

Why it is important

Modern VW vans like the Transporter and Crafter use a radar hidden behind the front badge to monitor the distance to the car in front.

This system powers the automatic emergency braking. If the light is on, the van will not automatically brake for you in an emergency.

How to fix

The most common cause is dirt, heavy rain, or snow covering the VW badge on the grille.

Pull over when safe and wipe the badge clean. If the light stays on after a restart, the radar sensor might have been knocked out of alignment (often caused by minor parking bumps).

You will need to take it to a main dealer to have the radar properly recalibrated.

What happens if ignored

You lose a vital safety net. If traffic stops suddenly and you do not react in time, the van will not step in to prevent the crash.

Front Assist Warning Light

How to fix front assist sensor blocked warning

The forward collision radar sits directly behind the glossy plastic Volkswagen emblem on the front grille.

In heavy winter weather, dirt, road grime, salt, or snow will coat the emblem and block the radar beams, causing the system to drop out.

Pull over safely and wipe the front badge clean with a microfibre cloth to restore the sensors and clear the warning.

Tyre Pressure Warning Light

How to reset the tyre pressure light on a VW dashboard

After adjusting your pressures to match the loading sticker inside the driver door frame, you must manually save the new benchmark.

Please note: On older models, press and hold the physical set button inside the glove box or centre console until you hear a chime.

On modern vans, navigate through the instrument cluster display menus using the steering wheel controls, locate the tyre pressure monitor section, and select store pressures.

Yellow Central Indicator Light

What does the yellow triangle with an exclamation mark mean?

A yellow triangle enclosing an exclamation mark is an advisory warning that alerts you to a non-critical fault or an active message stored on the digital cluster screen.

It can flag anything from an inactive lane assist warning light showing yellow because lane markings are faint, to a simple reminder that the outside temperature is close to freezing.

Bulb Warning Light

How to fix exterior bulb failure warning on LED lights

Traditional halogen bulbs can be changed by swapping the burnt filament out at the roadside.

However, modern LED light units use sealed circuit board clusters. If an LED cluster fails and triggers the bulb failure dashboard light, the internal diodes cannot be replaced individually; a service workshop must replace the entire headlight or taillight module as a sealed assembly.

VW Transporter Anti-Theft Key Fob Failure and Active Immobiliser Messages

Why it is important

This light usually looks like a car with a key inside it. It is an anti-theft system that stops the engine from starting if it does not detect the correct microchip inside your key fob.

How to fix

If the engine starts and immediately cuts out with this light flashing, try taking the key out and turning it around.

If you have a spare key, try using that one instead. Sometimes the battery inside the fob needs replacing. If neither key works, the van will need to be recovered to a dealership so they can reprogram the keys to the vehicle system.

What happens if ignored

You simply will not be able to drive the van. The engine will cut out after one or two seconds every time you try to start it.

Windscreen Washer Reservoir Low and Greasy Road Spray Visibility Risks

Why it is important

While it might seem minor compared to engine faults, clear visibility is essential for any commercial driver.

Vans kick up a lot of road spray, and running out of washer fluid on a dirty motorway is highly dangerous.

How to fix

Buy some screenwash from a petrol station or supermarket. Pop the bonnet and look for the blue cap (usually marked with a windscreen symbol).

Top it up to the brim. Using a proper screenwash mixture instead of plain water stops the fluid from freezing during the winter and clears greasy road dirt much better.

What happens if ignored

Your windscreen will quickly become smeared and impossible to see through in bad weather. This is an immediate safety hazard and will also result in an MOT failure.

Volkswagen Van Servicing

What Are the Typical Repair and Diagnostic Costs?

When a stubborn warning light puts your van into limp mode, a professional diagnostic check is required.

If a diesel filter is completely blocked, a main dealer can clear it using workshop software. The forced DPF regeneration cost typically ranges from £90 to £150. If the glow plug warning light stays flashing, a full set replacement is usually advised.

Here, the average glow plug replacement cost VW drivers face sits between £120 and £250, depending on your engine size, which is a small price to pay to avoid permanent starting issues.

Why Original Equipment Manufacturer Parts Matter

When a dashboard alert requires professional intervention, choosing Main Dealer Servicing ensures your commercial warranty stays fully protected.

Fitting cheap, non-approved aftermarket components can instantly void your manufacturer's warranty if those parts cause a secondary failure in the electrical or powertrain systems.

Furthermore, using genuine components allows technicians to follow exact factory diagnostic paths, typically keeping standard diagnostic workshop check times down to just 1 to 2 hours of labour.

⚡ Flashing Glow Plug Overview

A flashing amber glow plug light on a Volkswagen diesel engine signifies a malfunction within the engine management system. This fault often results in the vehicle entering a restricted performance state known as limp mode. Immediate diagnostic testing at an approved commercial service centre is required.

Engine Management Light

Can I drive my VW Crafter with the engine management light on?

If the engine management light glows steady amber and the van drives normally, you can continue your journey, but you should book an inspection promptly.

However, if the engine light flashes continually, you must pull over immediately. A flashing amber light signifies a severe misfire or emissions failure that will rapidly overheat and destroy expensive exhaust components if you continue driving.

Volkswagen Mechanic working on VW Vehicle

Why is my VW van struggling to start in the cold?

Diesel engines rely on high cylinder heat to ignite fuel. If your van struggles to start on frosty mornings, one or more glow plugs have likely failed, meaning the cylinders aren't reaching the necessary temperature. This extra strain drains the battery rapidly.

If you notice a small spanner symbol on a VW Crafter display alongside starting issues, it means a routine maintenance inspection is overdue.

W Mechanic Inspecting VW Tyres

Where to book a diagnostic check for a commercial VW van

When a complex warning fault disrupts your business schedule, avoid using generic code readers that pull up vague descriptions. You can book an official diagnostic check at your local Heritage Volkswagen Van Centre.

Our commercial vehicle workshops use factory software to communicate directly with your engine control unit, accurately pinpointing the problem to get your van back on the road safely.

Glow Plug Warning Light

Will driving with a flashing engine or glow plug light cause secondary damage?

Yes, there is a firm industry consensus that continuing to drive a commercial vehicle while an engine management light or glow plug light is actively flashing will cause severe secondary damage.

A flashing amber or red light indicates a critical engine misfire or emission failure.

As a result, if you ignore this, unburnt diesel fuel will wash into the hot exhaust system, causing catastrophic damage to the expensive catalytic converter and diesel particulate filter assembly within a matter of miles.

Will an active safety warning light cause an immediate MOT failure?

Yes, absolutely.

UK vehicle compliance guidelines explicitly dictate that any illuminated red or amber warning light related directly to primary safety systems will result in an immediate, automatic MOT Test failure.

If your van displays an active warning for the braking system, anti-lock brakes (ABS), Electronic Stability Programme (ESP), or the airbag system during an inspection, it is legally deemed unroadworthy and cannot be issued a passing certificate.

Keep Your Business Moving with Heritage

Ignoring a dashboard light can lead to massive repair bills and weeks of your commercial vehicle being off the road. Whether you need a simple AdBlue top-up, an Express Visual Check, or complex diagnostic repairs, our expert team is ready to help.

About Heritage Volkswagen Commercial Vehicles

Heritage Volkswagen Van Centre, located in Dorchester, is your dedicated specialist for commercial vehicle aftersales care in Dorset.

As a proud part of the Heritage Automotive Group - which has been serving the South West since 1996 - we understand that your van is the lifeblood of your business.

Being an officially authorised Volkswagen network partner means our friendly, manufacturer-trained technicians work to stringent brand standards.

From routine MOTs and servicing to complex diagnostic work, we use only genuine Volkswagen parts and factory-approved methods to ensure your commercial vehicle remains safe, efficient, and on the road where it belongs.

If you liked our Volkswagen Van lights warning lights guide, then you may like some of our other latest news, van guides and news, such as, for instance:
0
Image Vehicle Price Mileage Fuel Transmission
